Intermediate Tutorials

Intermediate Game Tutorial #1 - Displaying a tile based map

Introduction

We will now look at platform games and the use of tiles to display maps.

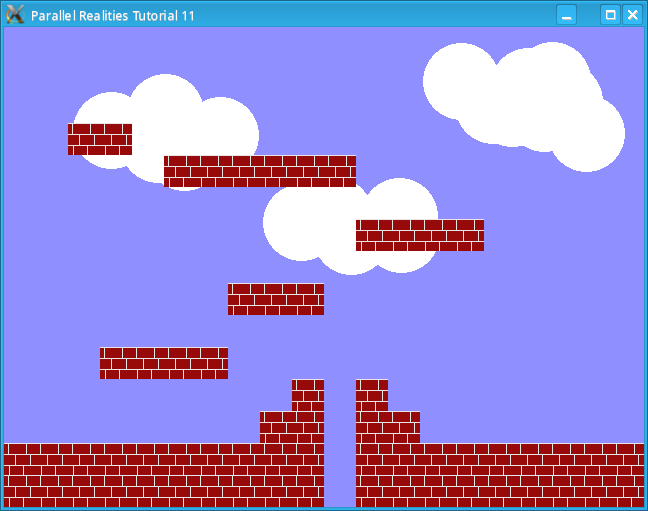

Compile and run tutorial11. The program will read the map data file and display the map on the screen. Closing the window or pressing Escape will exit the program.

An in-depth look

When creating a tile based game, we break the screen up into a grid. In this tutorial we create a tile size of 32x32 pixels giving us 20 tiles horizontally and 15 tiles vertically. We will look at structs.h to begin with:

typedef struct Map
{
    int tile[MAX_MAP_Y][MAX_MAP_X];
} Map;
We define our Map structure which contains an multidimensional array of ints. The maximum size of this array is defined by MAX_MAP_Y and MAX_MAP_X which are defined in defs.h.

We have made a minor change to init.c. The following command

SDL_ShowCursor(SDL_DISABLE);
will hide the mouse cursor when it is moved inside the SDL window.

In main.c, we load up the brick image, a background image and read the map data as follows:

/* Load the brick image */

brickImage = loadImage("gfx/brick.png");

/* If we get back a NULL image, just exit */

if (brickImage == NULL)
{
    exit(1);
}

/* Load the background image */

backgroundImage = loadImage("gfx/background.png");

/* If we get back a NULL image, just exit */

if (backgroundImage == NULL)
{
    exit(1);
}

loadMap("data/maps/map01.dat");
The loadImage function is our standard image loading function. The loadMap function takes the filename of the map file that we wish to load. We will look at this shortly. Once we have successfully loaded all of our resources we enter the standard main loop and wait for user input. We will now at the map loading functions.

map.c contains two functions to deal with loading the map and rendering it to the screen.

void loadMap(char *name)
{
    int x, y;
    FILE *fp;

    fp = fopen(name, "rb");

    /* If we can't open the map then exit */

    if (fp == NULL)
    {
        printf("Failed to open map %s\n", name);

        exit(1);
    }

    /* Read the data from the file into the map */

    for (y=0;y<MAX_MAP_Y;y++)
    {
        for (x=0;x<MAX_MAP_X;x++)
        {
            fscanf(fp, "%d", &map.tile[y][x]);
        }
    }

    /* Close the file afterwards */

    fclose(fp);
}
loadMap takes the filename of the map we wish to load. The data file is a very simple text file containing 0s and 1s to describe the map layout. We will take a brief look at this file:
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 0 1 1 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1
A 0 denotes a blank tile and 1 denotes a brick tile. Note that we must include either a space or carriage return between the digits so that scanf treats them as individual numbers and not one large number. Once we have successfully opened the file, we read in the map data one row at a time, one column at time. Once we are done we close the file. This gives us a multidimensional array containing our map data. The second function in the file deals with drawing the map:
void drawMap()
{
    int x, y;

    /* Draw the background */

    drawImage(backgroundImage, 0, 0);

    /* Draw the map */

    for (y=0;y<MAX_MAP_Y;y++)
    {
        for (x=0;x<MAX_MAP_X;x++)
        {
            if (map.tile[y][x] != 0)
            {
                drawImage(brickImage, x * TILE_SIZE, y * TILE_SIZE);
            }
        }
    }
}
First, we draw the background, just so the screen has some more colour to it. We then loop through the map from top to bottom, from left to right and if the tile at the array index is not 0, then we will draw a brick. Note that we multiply the x and y values up by TILE_SIZE. This is because we only have 20 tiles horizontally and 15 vertically as defined by MAX_MAP_X and MAX_MAP_Y, so we need to scale up the position of the tile according to TILE_SIZE.

The remaining files and functions have been covered in the basic tutorials so we will not look at them.

Conclusion

Displaying a tile based map on the screen does not require a lot of code. Since the map data file is just a text file, it would be worth editing the file and changing some of the 0s and 1s to produce a different map. Ensure though that you have 20 digits on each row and 15 rows in the file to ensure that the file loads up correctly.

Downloads

Source Code
